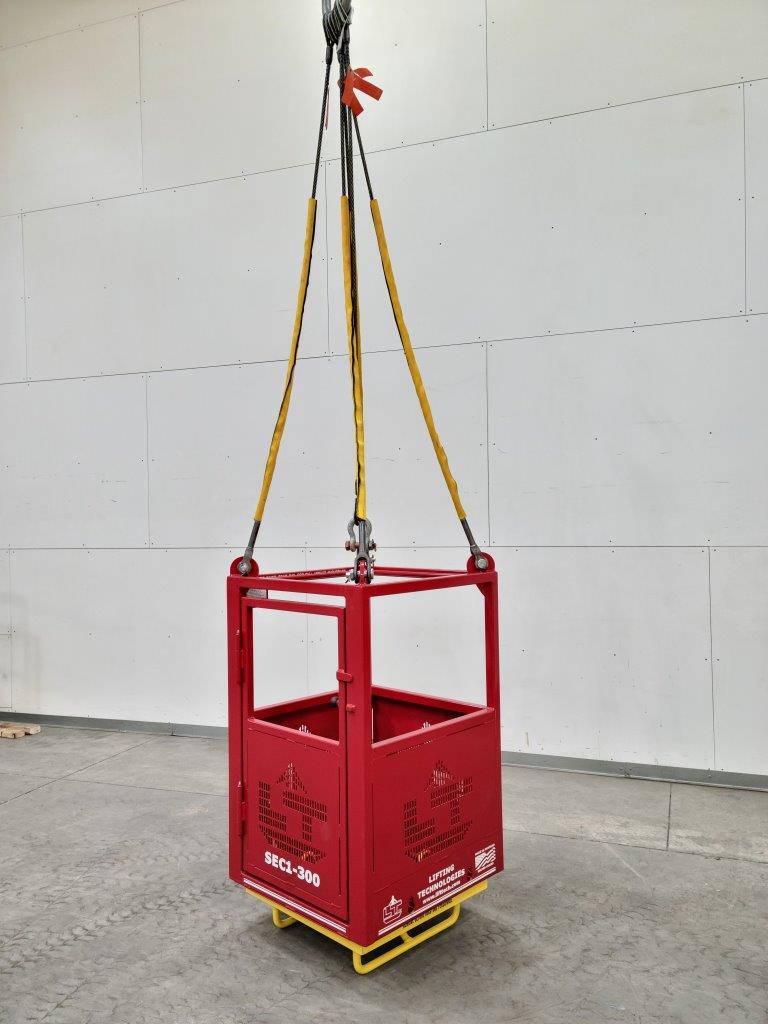

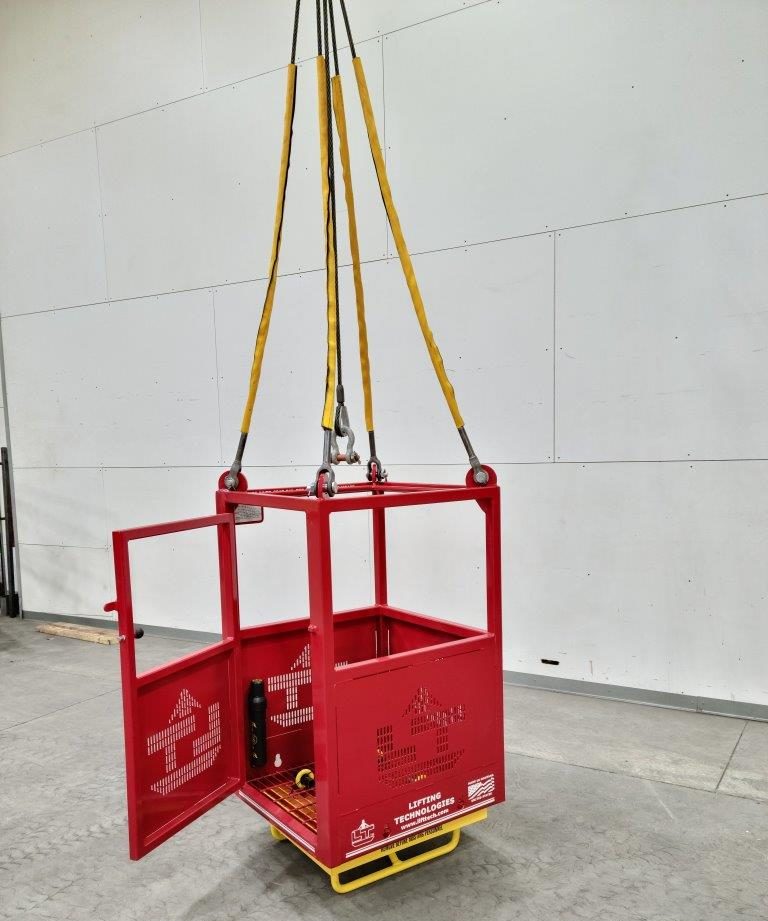

SEC1-300 Square Professional Crane Man Basket
Product Description
The SEC1-300 is the entry-size square model in Lifting Technologies’ Professional crane man basket line, designed for one worker where a compact square footprint and full OSHA-compliant guarding are needed but overhead protection is not required. Its 28.25″ by 28.25″ outside dimensions give a very small plan area, making it suited to tight structural bays, close clearances around equipment, and other confined locations under the crane hook.
Professional-Series baskets use a high-strength 0.120″ wall, 1.500″ square tubular steel frame with heavy-gauge steel floor grating to provide a solid, non-slip platform. Standard guarding includes 42″ high guardrails from the floor, 6″ high toeboards around the perimeter, and perforated steel side panels from toeboard to mid-rail to help retain tools and small objects. An inward-opening access gate with a positive restraining device controls entry and exit, and a full-perimeter inner grab rail provides personal fall-arrest anchorage in compliance with OSHA 1926.502 Subpart M.
The SEC1-300 is 28.25″ width and 28.25″ length, has a maximum rated load capacity of 300 lb, and an approximate basket weight of 250 lb. These ratings are intended for a single occupant plus tools and PPE; total live load must not exceed 300 lb.
Suspension is via a dedicated base-attached sling system using a four-leg sling assembly made from 1/2″ 6×36 IWRC wire rope, connected to a master link for the crane hook. Each sling leg is attached directly to the platform base with swage sockets and safety-threaded clevis pins, forming a base-attached hoisting system that helps minimize platform tipping and provides even load distribution under the basket. A fifth safety leg ties off to the load line above the overhaul ball for additional stability and alignment with OSHA 29 CFR 1926.1431 personnel-hoisting practices.
Every SEC1-300 is proof-load tested at 125% of its rated capacity—375 lb—for verification, using Lifting Technologies’ unique easy-on/easy-off detachable test weight system. Baskets ship with the sling assembly, detachable test weights, Use and Safety Handbook, access to Lifting Technologies online video training, proof-load test certificates, and inspection checklists to support safe setup, pre-use inspection, and documentation requirements.
SEC1-300 is used wherever a single worker needs safe crane-suspended access to localized work areas without the need for overhead protection, such as confined structural zones, small equipment fronts, and short platform edges. The open-top design keeps weight and height lower than overhead models, while still providing full guardrails, toeboards, and fall-arrest anchorage.
Industrial Applications
Construction & Structural
On construction and structural steel projects, SEC1-300 is well suited to one-person tasks like bolt tightening, small weld touch-ups, connection inspection, or minor detail work at beams, columns, or edge locations where only one worker is necessary. The 28.25″ × 28.25″ square footprint allows close positioning in tight structural bays and near obstructions.
Because it is open-top, SEC1-300 is typically used in areas without significant overhead falling-object hazards or where such hazards are mitigated by organizational controls rather than a built-in roof.
Industrial Plants & Maintenance
In industrial facilities, SEC1-300 serves single-technician maintenance, inspection, or light repair activities on equipment fronts, small mezzanine edges, localized pipe runs, or instrumentation points. Its compact size makes it easier to maneuver and position around equipment, piping, and structural framing than larger, multi-person platforms.
Perforated sides and toeboards help limit dropped-object potential to the area immediately around the basket, and the inner grab rail provides anchorage for a personal fall arrest system, supporting plant fall-protection programs.
Utilities & Infrastructure
For utilities and civil infrastructure, SEC1-300 is useful for targeted inspection, sensor installs, or small repair work at discrete points on parapets, girders, or access galleries where a single worker is sufficient and space is limited. The square plan gives equal dimension in both directions, making orientation to the work face flexible while maintaining the same footprint.
Its open-top design allows the worker to reach upward or sideways without interference from an overhead frame, while relying on harness tie-off to the inner grab rail and proper crane operation for safety.
Features & Benefits
Compact Single-Person Square Work Area: The 28.25″ × 28.25″ square platform provides a minimal footprint for one worker plus tools, ideal for confined or obstructed locations where larger baskets cannot fit.
Professional-Series, OSHA-Compliant Construction: SEC1-300 employs a 0.120″ wall, 1.500″ square tubular steel frame, heavy-gauge steel floor grating, 42″ guardrails, 6″ toeboards, perforated sides, an inward-opening gate, and a full-perimeter inner grab rail, meeting OSHA 1926.502 fall-protection practices for guardrails and anchorage.
Dedicated Base-Attached Sling Assembly With Safety Leg: The four-leg 1/2″ 6×36 IWRC wire rope sling assembly, attached directly to the platform base and connected to a master link, along with the fifth safety leg to the load line above the overhaul ball, provides stable, evenly distributed support in line with OSHA 1926.1431 crane-hoisted personnel platform requirements.
125% Proof-Load Tested With Detachable Test Weight: Each SEC1-300 is proof-tested at 375 lb (125% of the 300 lb rated load) and comes with Lifting Technologies’ easy-on/easy-off detachable test weight system, plus proof-load certificates and inspection forms, supporting commissioning and periodic inspection obligations.
Durable Powder-Coat Finish and Customization: Professional man baskets feature an electrostatic powder-coat finish (standard solid red with yellow test weights) for resistance to impact, abrasion, and corrosion, and can be customized in color and configuration to meet project or branding requirements.
Frequently Asked Questions
What are the SEC1-300 dimensions and ratings?
The SEC1-300 is 28.25" width by 28.25" length, with a maximum rated load capacity of 300 lb and a basket weight around 250 lb.
How many people can SEC1-300 carry?
SEC1-300 is rated for one occupant only; the combined weight of the worker, tools, materials, and PPE must not exceed the 300 lb rated load capacity.
Does SEC1-300 have overhead protection?
No. SEC-series baskets are open-top square Professional models without overhead protection; overhead-protected square baskets are designated SECO-series.
What OSHA standards does SEC1-300 address?
The platform is designed to align with OSHA 29 CFR 1926.1431 for hoisting personnel with cranes and OSHA 1926.502 Subpart M for fall protection, including guardrail and toeboard specifications, side enclosure, anchorage, and proof-load testing at 125% of rated capacity.
What is included with SEC1-300?
Standard SEC1-300 packages include the open-top square platform, four-leg sling assembly with master link and safety leg, detachable test weight system, data plate, Use and Safety Handbook, proof-load test certificate, access to Lifting Technologies online video training, and inspection checklist.
When should SEC1-300 be chosen over SECO1-300?
SEC1-300 is preferred when overhead hazards are minimal or controlled administratively and a lighter, shorter open-top basket is desired; SECO1-300 is used when the same 28.25" square footprint is required but with integrated overhead protection.
Find Out More
For other square Professional baskets without overhead protection, see SEC2-600, SEC3-900, and SEC4-1200 (where listed).
For square Professional baskets with overhead protection, see SECO1-300, SECO2-600, SECO3-900, and SECO4-1200.
For heavier-duty Premier series overhead models, see the Premier Crane Man Basket and Premier Man Basket (Round) pages.
