PREMIER CRANE MAN BASKET

crane man basket

Safety Standard for Crane-Suspended Man Baskets

Each crane man basket sold through Lifting Technologies comes with an OSHA Certificate of Compliance and our unique detachable Test Weight System, ensuring maximum safety below the hook and full compliance with OSHA.

We offer Premier, Professional, Rescue, and custom crane-suspended baskets of almost any shape and size.

Lifting Technologies' famous yellow and black Premier Series man baskets are available in a range of sizes including round, square, and rectangular configurations with overhead and non-overhead options. They provide employees the security of high-strength steel round tubing construction and our unique detachable Test Weight System.

All man baskets are sold as a "turn-key" package and come equipped with LT's unique test weight system, sling assembly, and training DVD.

Premier Crane Man Basket Features

Lifting Technologies logo

Features include:

  • Dedicated base-attached suspension system which minimizes platform tipping and provides even load distribution
  • Electrostatic powder coat finish that provides high resistance to impact, abrasions, chemicals, and corrosion. (Available in our standard safety yellow and black or choose a custom color of your own as an additional option)
  • Unique easy-on/easy-off detachable test weight system
  • Heavy-gauge steel frame and floor grating to provide solid platform support
  • High-strength 0.140” and 0.145” wall, 1.660” and 1.900” O.D. steel round tubing frame.
  • Braced truss skid system to keep platform floor off of the ground.
  • Four-leg sling assembly suspension system of 1/2” 6x36 IWRC wire rope, secured to a master link, and attached to platform base by swage sockets and safety threaded clevis pins. Also included is the fifth leg for tie-off to loadline above overhaul ball.
  • Sides enclosed with perforated steel plate from toe-board to mid-rail
  • 42” high guard rail and grab Grab rail inside entire perimeter providing personal fall arrest anchorage in compliance with OSHA, part 1926.502, subpart M
  • Optional access gate, with positive restraining device
  • Optional overhead protection, with perforated steel skylights, 6’ 7” above the platform floor
  • Heavy-duty plastic data plates provide unit weight, maximum rated load capacity, maximum occupancy, test weight, and serial number
  • A three-year manufacturer’s warranty
  • AWS certified welding procedures performed by certified welders
  • Use and Safety Handbook and  training DVD explaining OSHA rule
  • Certificate of OSHA compliance provided with each platform in documentation tube.

Download the product brochure

DOWNLOAD BROCHURE

"*" indicates required fields

Name*

Request a quote for a Premier Crane Man Basket.

REQUEST A QUOTE

Learn More About Our Custom Crane Man Baskets

Explore our custom-made Crane-Suspended Man Basket models.

Crane Man Basket Dimensions

Rectangular Man Baskets

  DIMENSIONS (In) MAX RATED LOAD CAPACITY (Lbs) TEST WEIGHT (Lbs) BASKET WEIGHT (Lbs)
RECTANGULAR MODELS Width Length
BM1-300G 29 38 300 375 395
BM2-600G 36 60 600 750 530

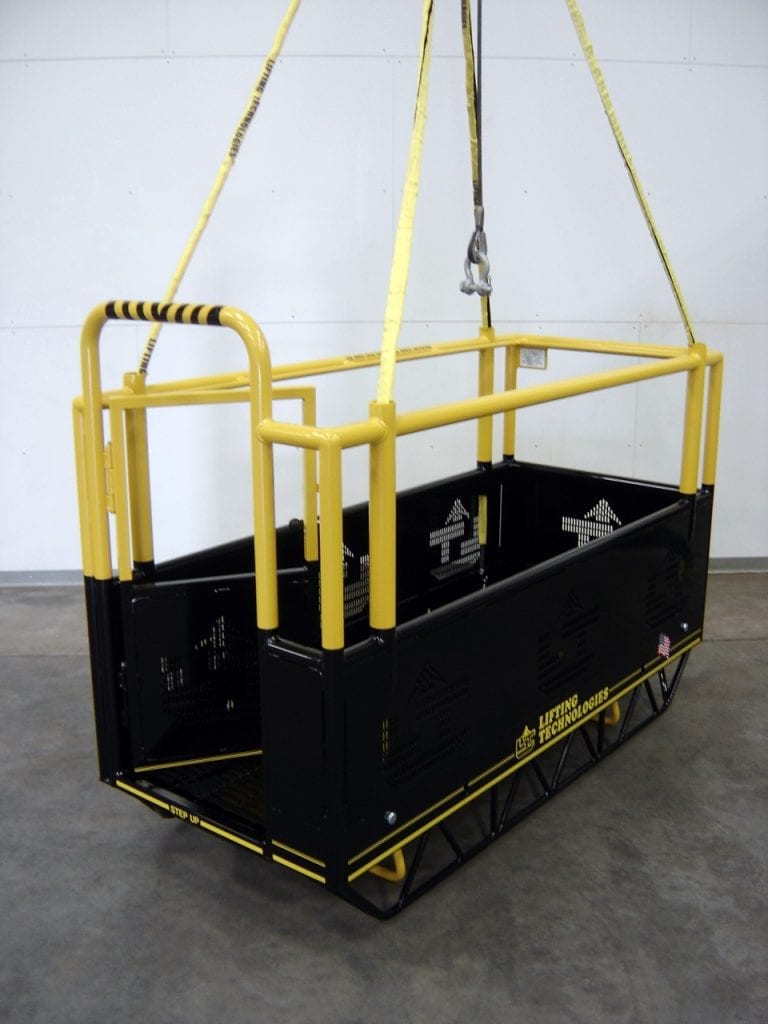

BM3-900G 36 84 900 1125 660
BM4-1200G 36 108 1200 1500 805

Rectangular Man Baskets With Overhead Protection

  DIMENSIONS (In) MAX RATED LOAD CAPACITY (Lbs) TEST WEIGHT (Lbs) BASKET WEIGHT (Lbs)
RECTANGULAR MODELS Width Length
BM1-300S 29 38 300 375 475
BM2-600S 36 60 600 750 685
BM3-900S 36 84 900 1125 870

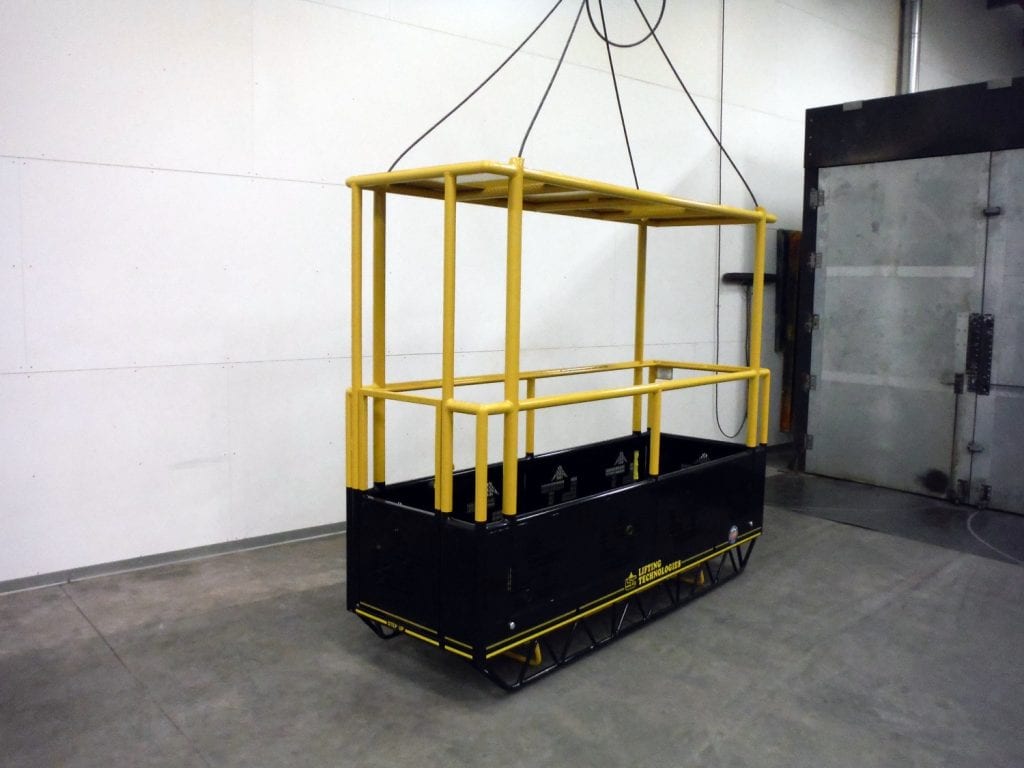

BM4-1200S 36 108 1200 1500 1130

Square Man Baskets

  DIMENSIONS (In) MAX RATED LOAD CAPACITY (Lbs) TEST WEIGHT (Lbs) BASKET WEIGHT (Lbs)
SQUARE MODELS Width Length
SM1-300G 29 29 300 375 315

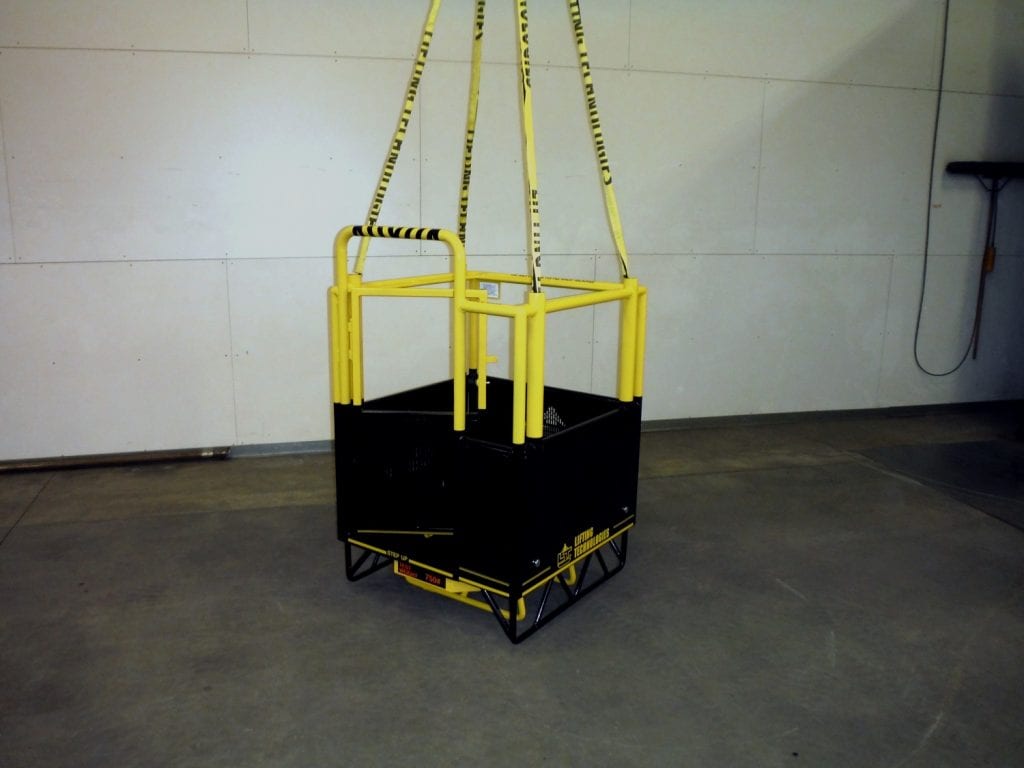

SM2-600G 38 38 600 750 430
SM3-900G 48 48 900 1125 530

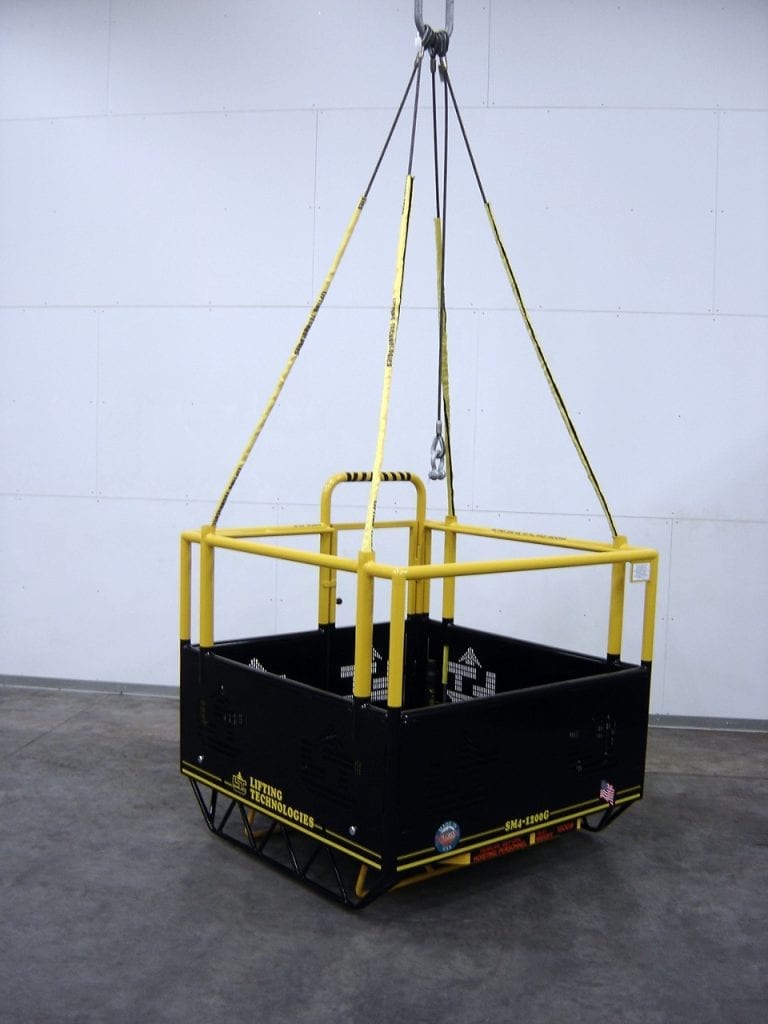

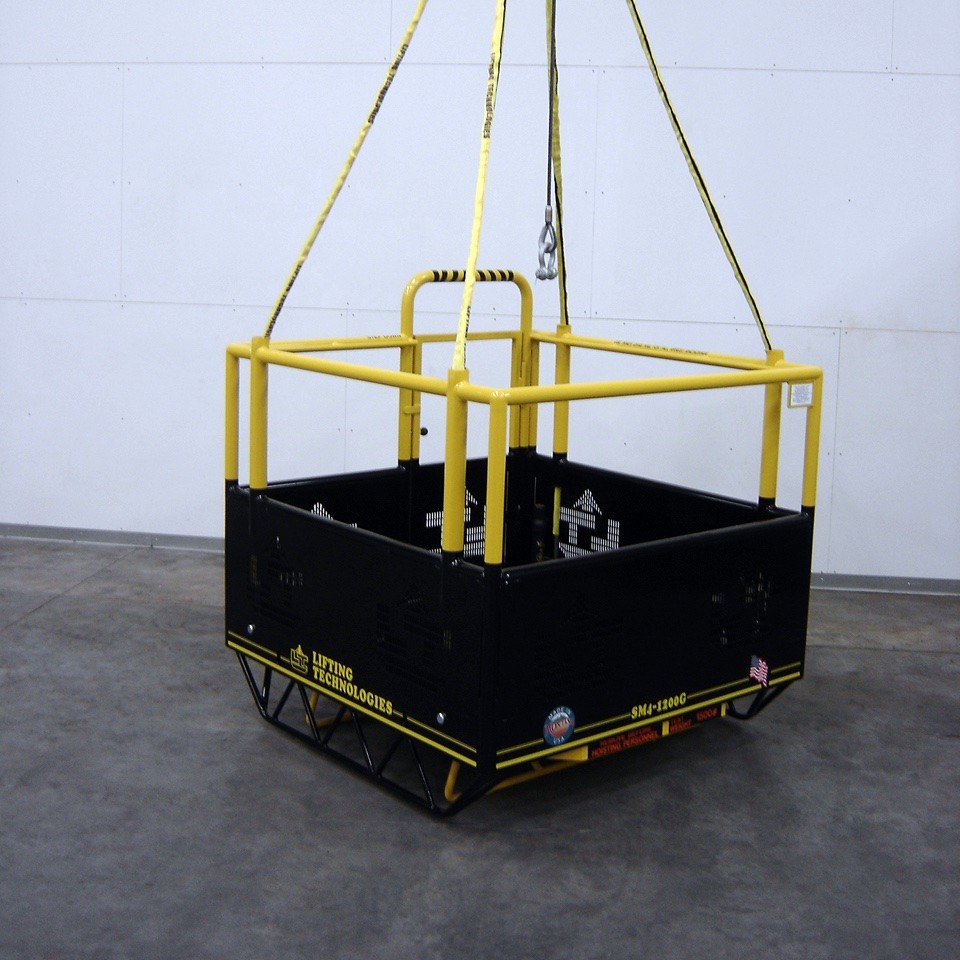

SM4-1200G 58 58 1200 1500 675

Square Man Baskets With Overhead Protection

  DIMENSIONS (In) MAX RATED LOAD CAPACITY (Lbs) TEST WEIGHT (Lbs) BASKET WEIGHT (Lbs)
SQUARE MODELS Width Length
SM1-300S 29 29 300 375 405

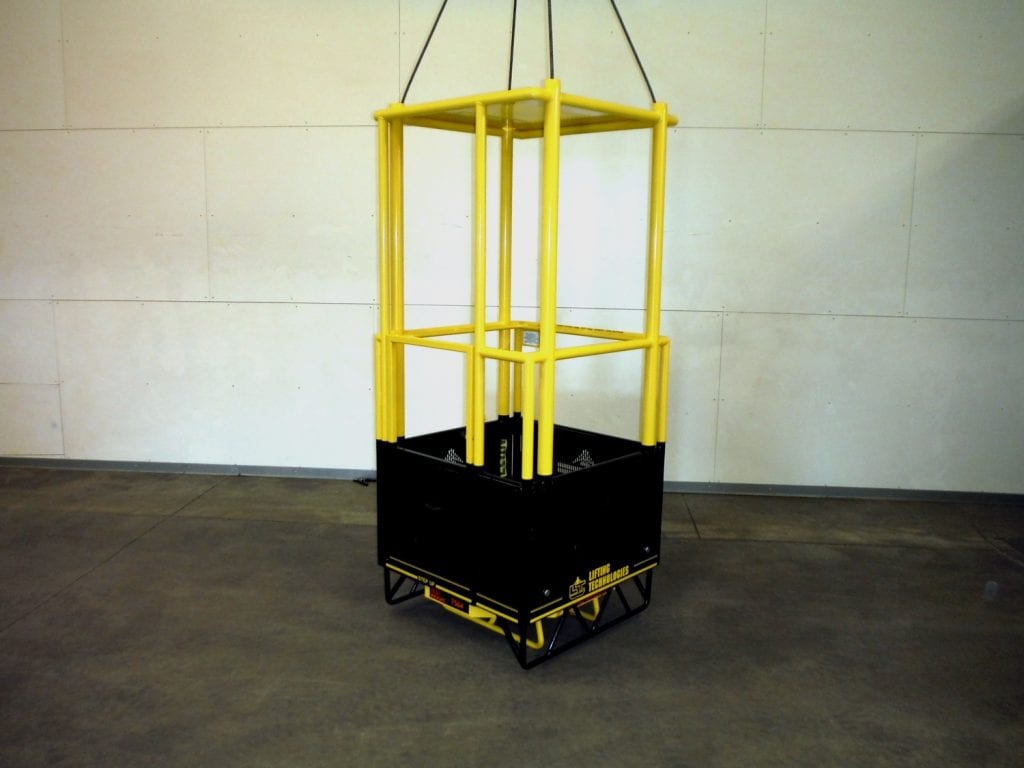

SM2-600S 38 38 600 750 555

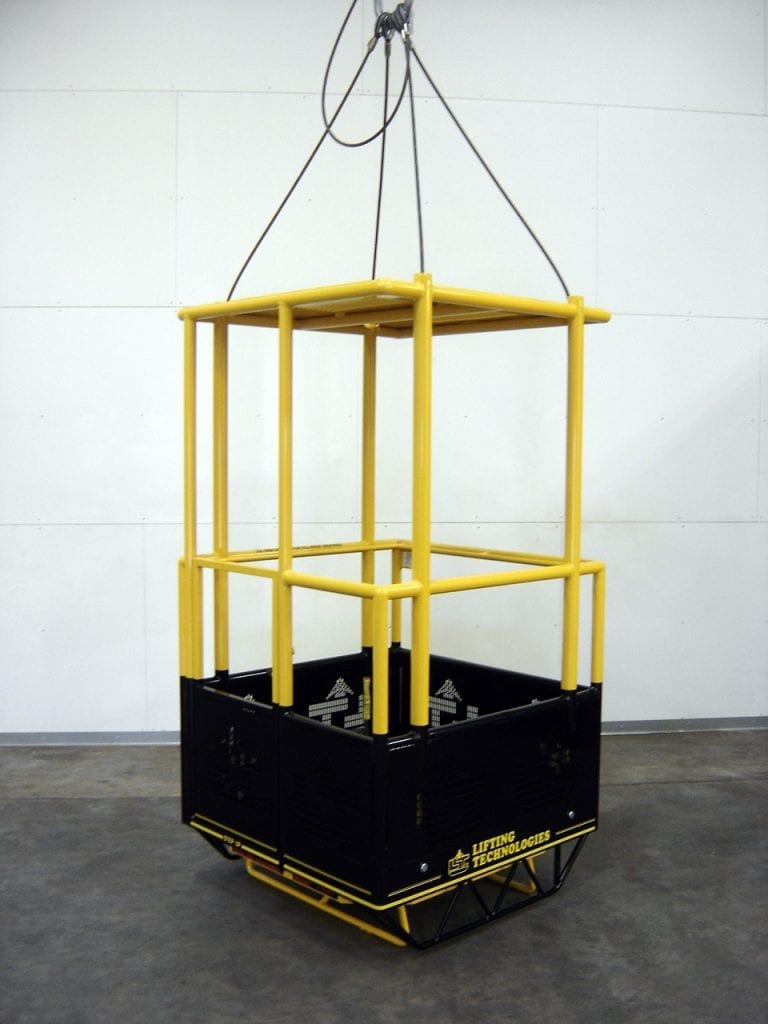

SM3-900S 48 48 900 1125 690
SM4-1200S 58 58 1200 1500 865

Round Man Baskets

  DIAMETER (In) MAX RATED LOAD CAPACITY (Lbs) TEST WEIGHT (Lbs) BASKET WEIGHT (Lbs)
ROUND MODELS
RM2-600G/38 38 600 750 355
RM3-900G/48 48 900 1125 430
RM4-1200G/60 60 1200 1500 560

Round Man Baskets With Overhead Protection

  DIAMETER (In) MAX RATED LOAD CAPACITY (Lbs) TEST WEIGHT (Lbs) BASKET WEIGHT (Lbs)
ROUND MODELS
RM1-250S/26 26 250 313 355
RM1-300S/26 26 300 375 355
RM1-250S/32 32 250 313 380
RM1-300S/32 32 300 375 380
RM2-600S/38 38 600 750 435
RM3-900S/48 48 900 1125 525
RM4-1200S/60 60 1200 1500 710

Man baskets have a 42" guardrail height from the floor and overhead models have a 79" inside height from the floor to overhead frame. All dimensions are outside dimensions. The rated load capacity of all models may be increased. Lifting Technologies welcomes inquiries for custom-designed platforms of almost any size or shape.
