Custom Crane-Suspended Man Baskets Gallery

Designed and built for accessing recessed areas for offshore drill rig maintenance, with full rated capacity at any point across the entire deck length. All of LT’s cantilevered platforms can be loaded to max capacity at any point on the length of the deck.

Dimensions: 132″ X 36″ X 100″
Capacity: 900 lbs
Model: CW3-900S 082412

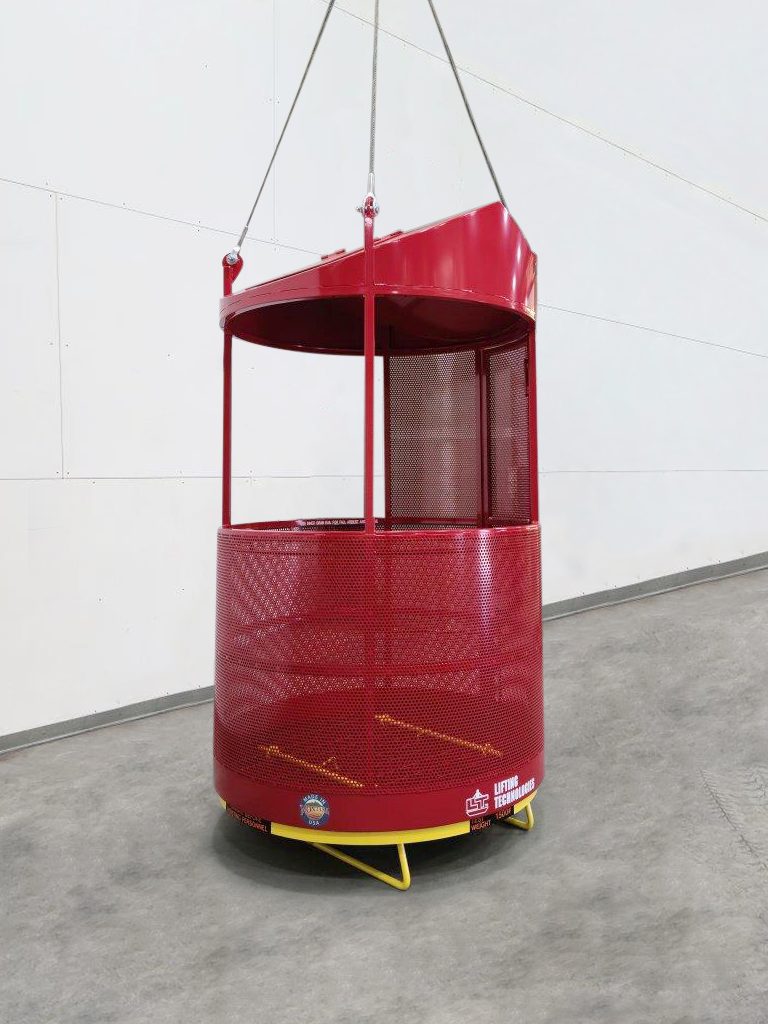

This crane suspended personnel hoisting platform is designed and built for a general contractor working in a pit and requiring OSHA 1926.800 Underground Construction compliance. This personnel platform is fully enclosed and contains additional fall protection anchorage in the overhead structure for convenient lanyard anchorage of the 10 persons being hoisted to the work site.

Dimensions: 84″ Diameter
Capacity: 10-Person, 2700 lbs
Model: ERMO10-2750SO EC032278.10

With dual-use capability as a crane-suspended personnel platform and forklift hoisted personnel platform, these RECOFL2-600 baskets were purchased by a crane company for their new fleet of cranes supporting the wind energy sector. The RECOFL2-600 effectively doubles your equipment capacity with the dual-use capabilities. LT’s designs are the safest and most efficient available, providing quality and safety above all others.

Dimensions: 60″ X 36″ X 79″ High
Capacity: 2-Person, 600 lbs
Model: RECOFL2-600 EC062369

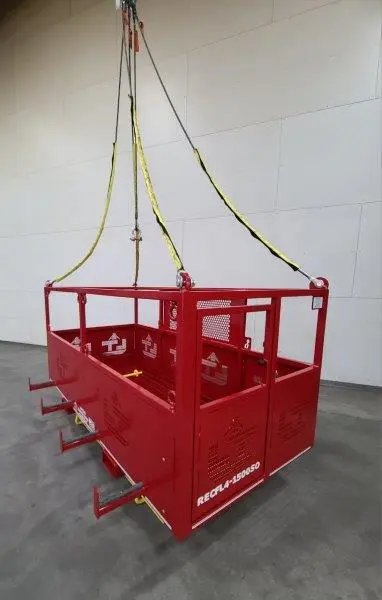

This platform was Engineered with “U-hooks” on front to support windows or panels for installation. Designed for crane hoisting and of tools and misc. items.

Dimensions: 96″ x X 48” X 42″ High
Capacity: 4-Person, 1500 lbs
Model: RECFL4-1500SO EC052368

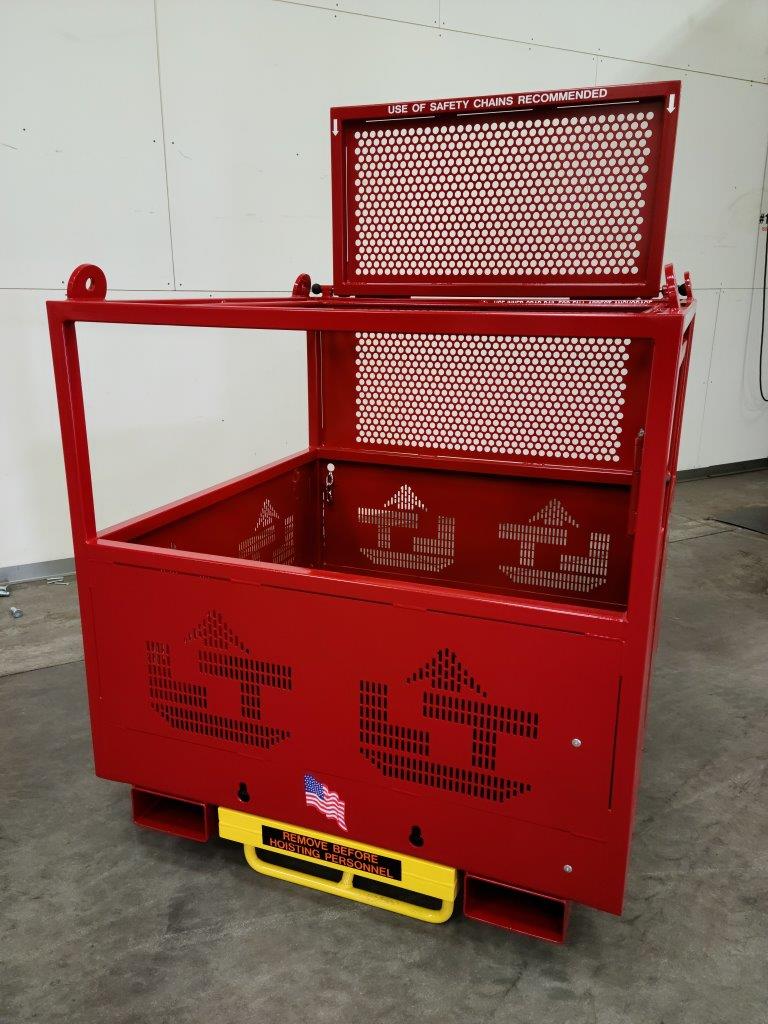

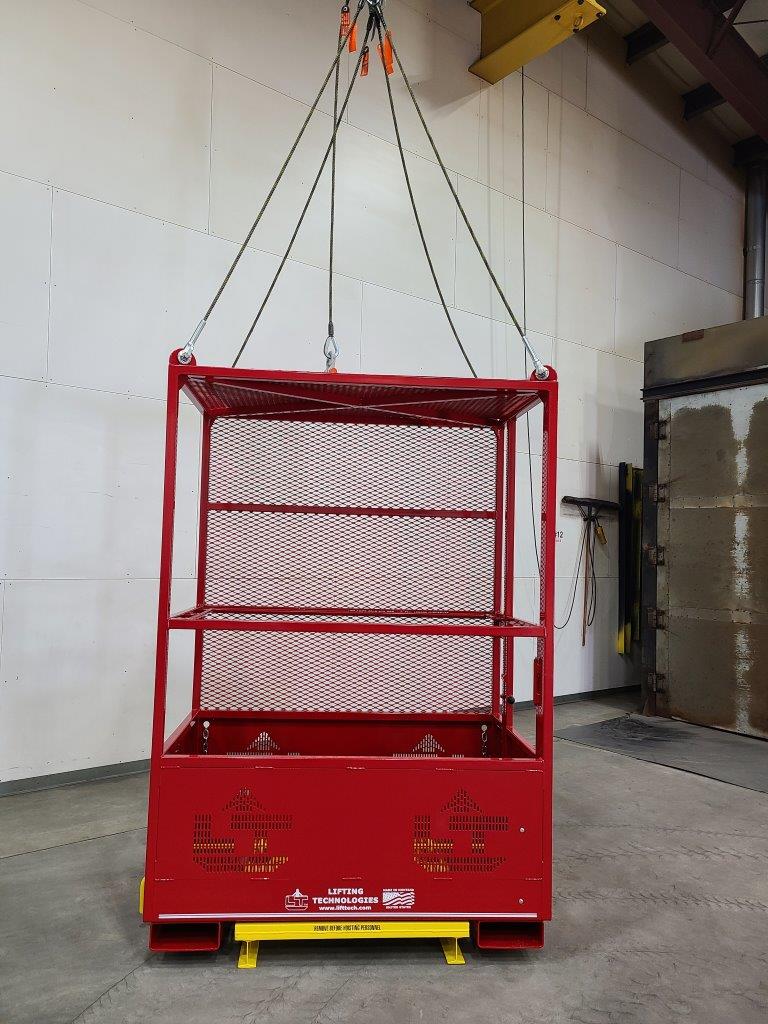

This platform is designed for lifting personnel with either a crane or a forklift, eliminating the need for two separate platforms. In addition to the sling assembly, test weight system and security chains, it includes overhead protection to protect personnel from falling objects. One side is enclosed for protection from the forklift and has our pin system to secure it to the forklift to prevent shifting or sliding on the forks.

Dimensions: 60″ x 36″ x 79″ High
Capacity: 600 lbs
Model: RECOFL2-600 EC112237

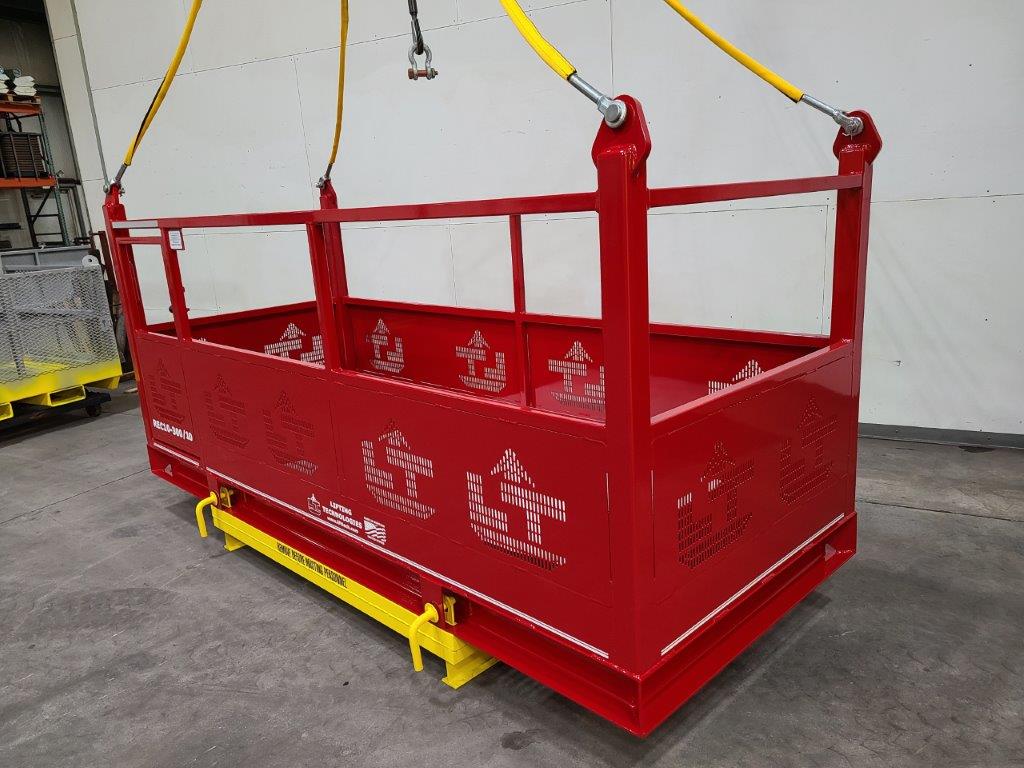

This platform was purchased by a power company. It was built to transport up to 10 people and materials to a work location.

Dimensions: 120″ x 48″ X 42″ High
Capacity: 10-person, 3000 lbs
Model: REC10–3000/10 EC102232

This custom two-person man basket is designed with overhead protection and U-Hooks on one side for hoisting windows, doors, etc. It comes complete with sling system and our rapid on/off test weight system.

Dimensions: 108″ x 60″ x 95″
Capacity: 2-person, 1000lbs
Model: RECO2-1000SO EC0722122

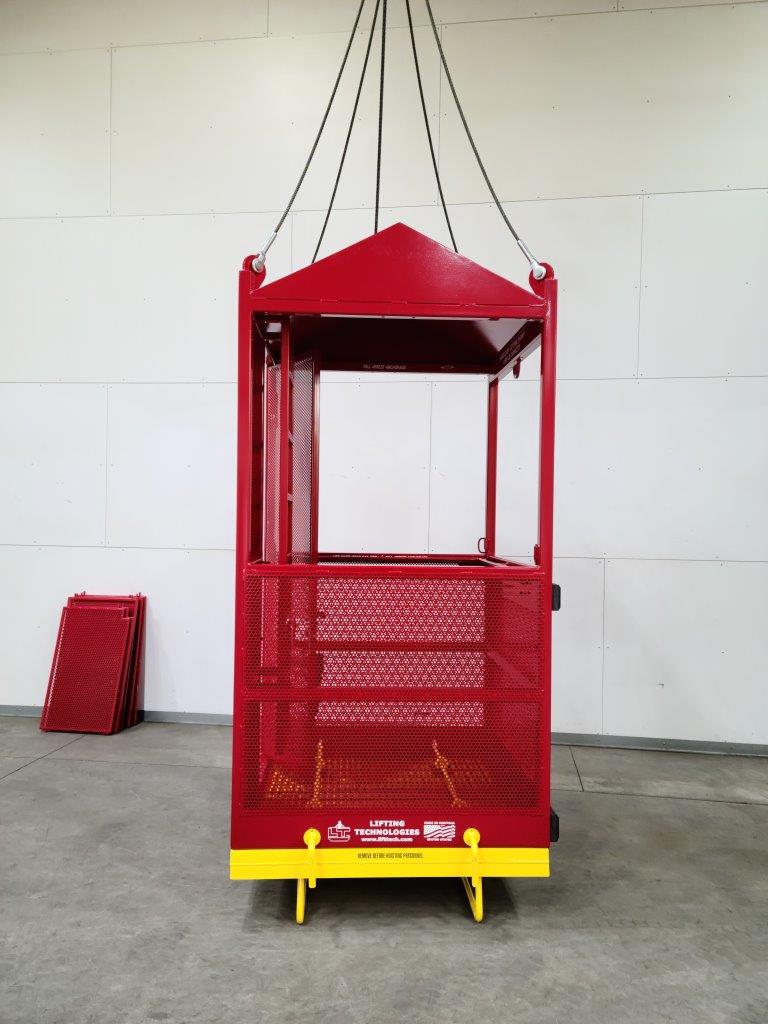

This man basket is a 3-person custom made platform with removable panels on three sides. It comes with a ladder and escape hatch in overhead with bumpers on one side, and LT’s sling system and rapid on/off test weight system. OSHA 1926.800 Underground Construction compliant.

Dimensions: 48″ x X 48″ X 95″ High
Capacity: 3-Person, 2100 lbs
Model: SECO3-2100SO EC0222743

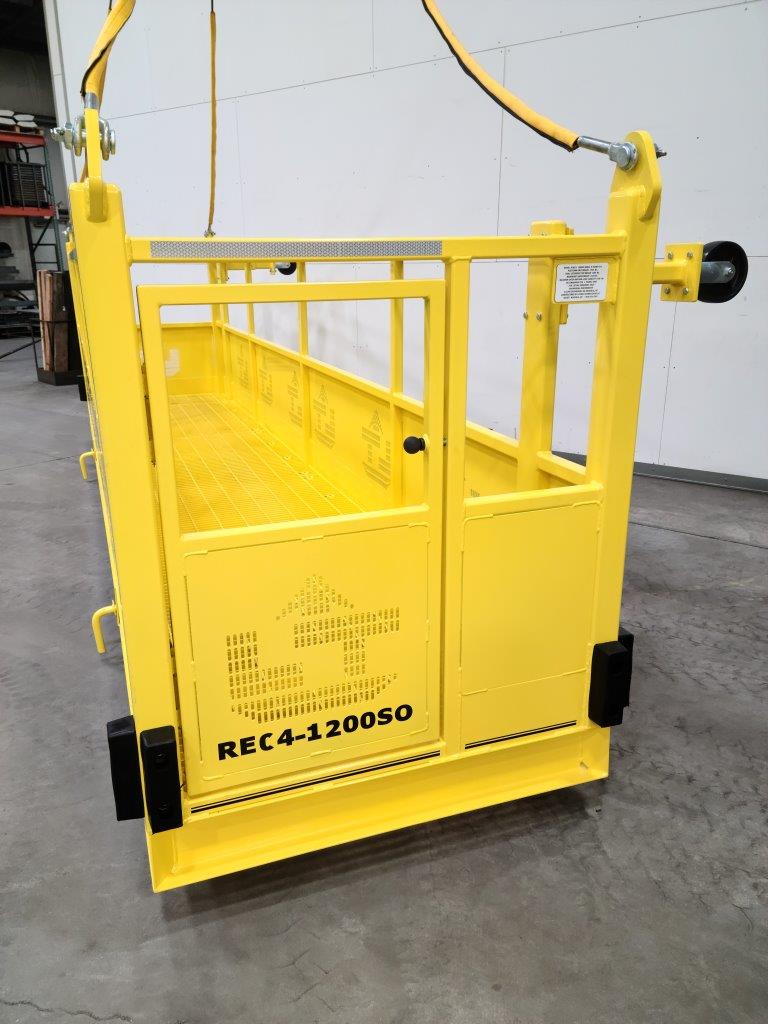

This custom four person man basket has telescoping, and adjustable roller system on one 211″ side. It also comes with rubber bumpers on sides and ends. It has fork tubes to move while on the ground, and comes complete with sling system and our rapid on/off test weight system.

Dimensions: 211″ x 42″ x 42″
Capacity: 4-person, 1200lbs
Model: REC4-1200SO EC0821314, EC0821324

This custom 3 man basket is unique because it has a trap door to allow for escape or work through while suspended above things, when in use without yellow test weight. The platform is used with a crane.

Dimensions: 108″ x 60″
Capacity: 3-person, 1000lbs
Model: REC3-1000SO EC0521043

This crane suspended personnel platform with 3 removable panels, sloped roof and an escape hatch is OSHA 1926.800 underground construction compliant and manufactured for a road construction company in MN.

Dimensions: 60″L x 98″W x 108″H
Capacity: 4-man, 1200lbs
Model: ERM4-1200SO-60 EC0121774

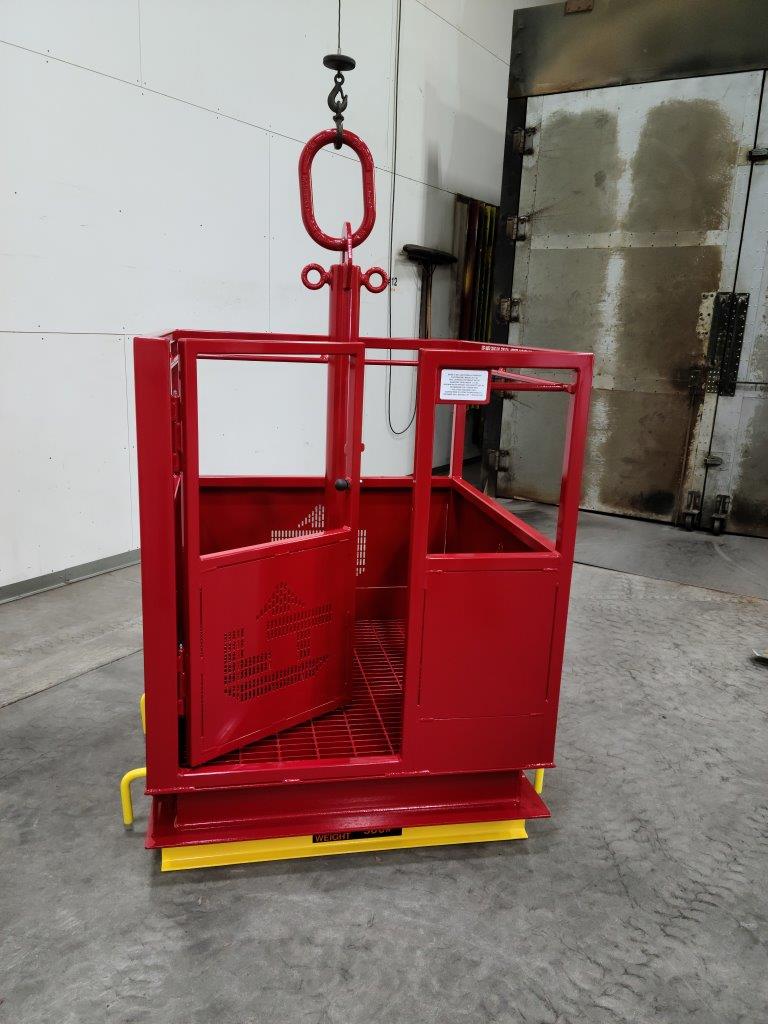

This platform is a man basket with a center pick post for crane suspension. This platform utilizes a 5/8″ safety cable attached to the master link and overhaul ball on the load line and is shipping to a construction company in Canada.

Dimensions: 48″ x 36″
Capacity: Two-man, 600lbs
Model: REC2-600CP EC1220622

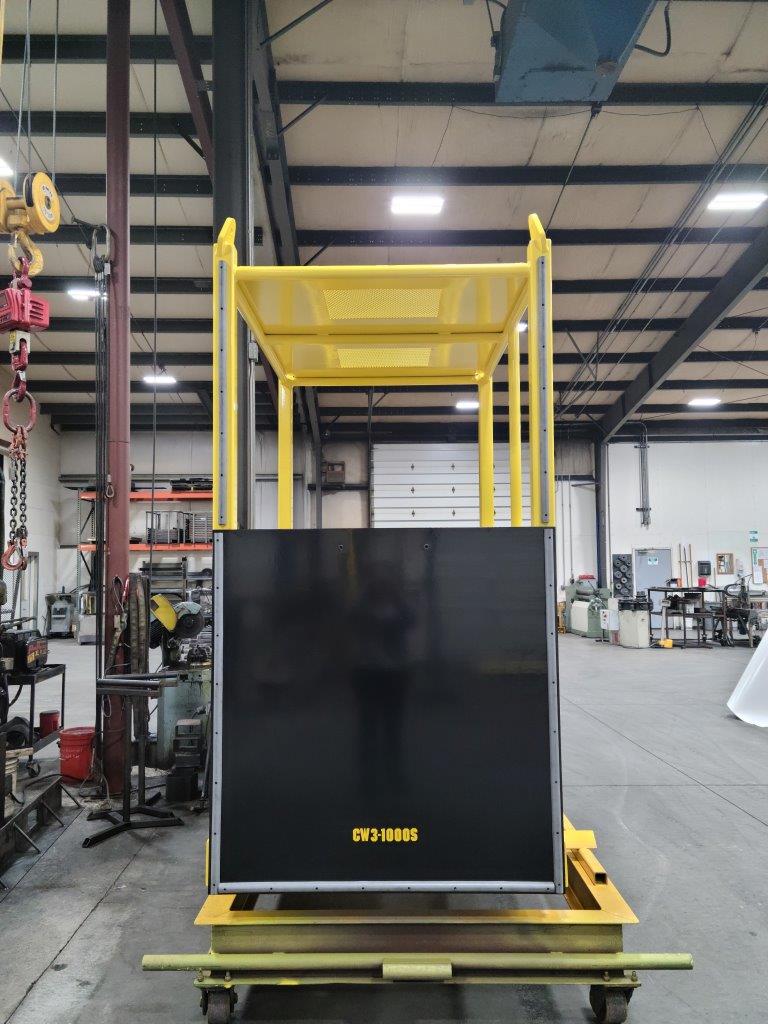

This is a three-man cantilevered crane suspended personnel platform with overhead protection. Both 48″ ends have rubber surface guards for protection. These platforms are to be used on bridges and dams and have been shipped to California.

Dimensions: 204″ x 48″ x 79″
Capacity: 3-person, 1,000lbs **rated 1000lbs anywhere on length of the deck with constant stability**
Model: CW3-1000S 1120253

Designed for an international mining company that requires overhead structure to keep the rigging assembly out of the working area but does not require a fully covered roof.

Dimensions: 108″ X 36” X 95″ High
Capacity: 1200 lbs
Model: RECO4-1200SO EC062381

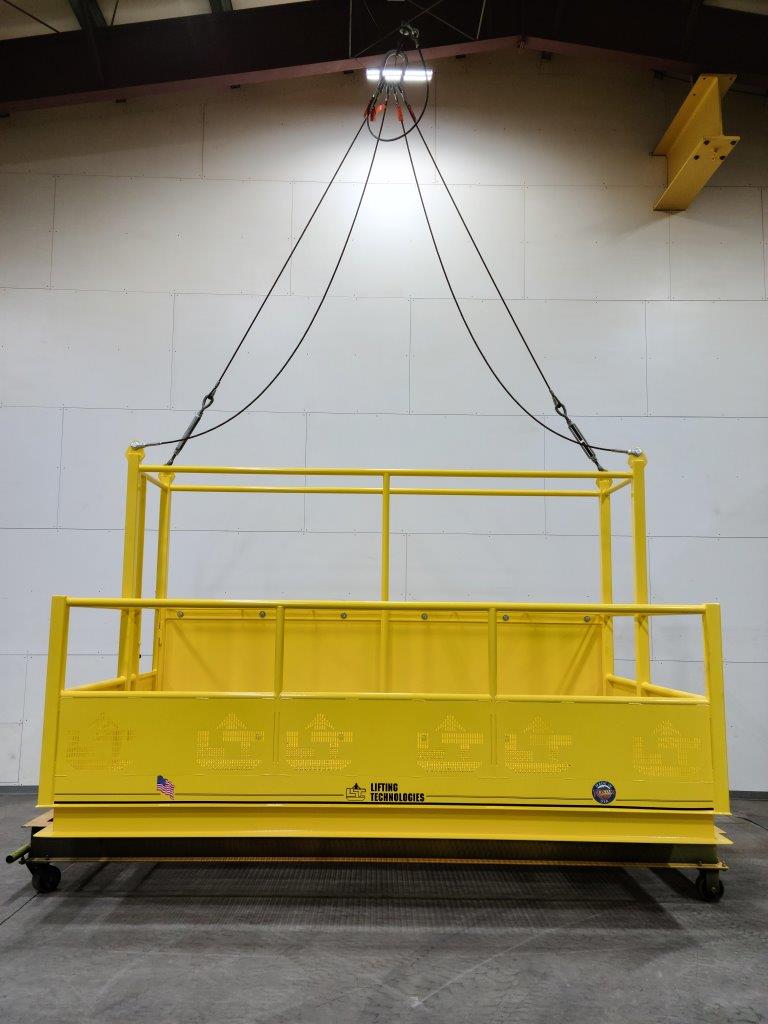

This custom cantilever crane suspended man basket with overhead structure was designed with additional width to maximize access to the work surface area and minimize need to change platform position. Often used on bridges and dams, this man basket was shipped to a bridge construction company in GA.

Dimensions: 144″ x 84″ x 79″
Capacity: 2-man, 1200lbs
Model: CW2-1200S 1020242

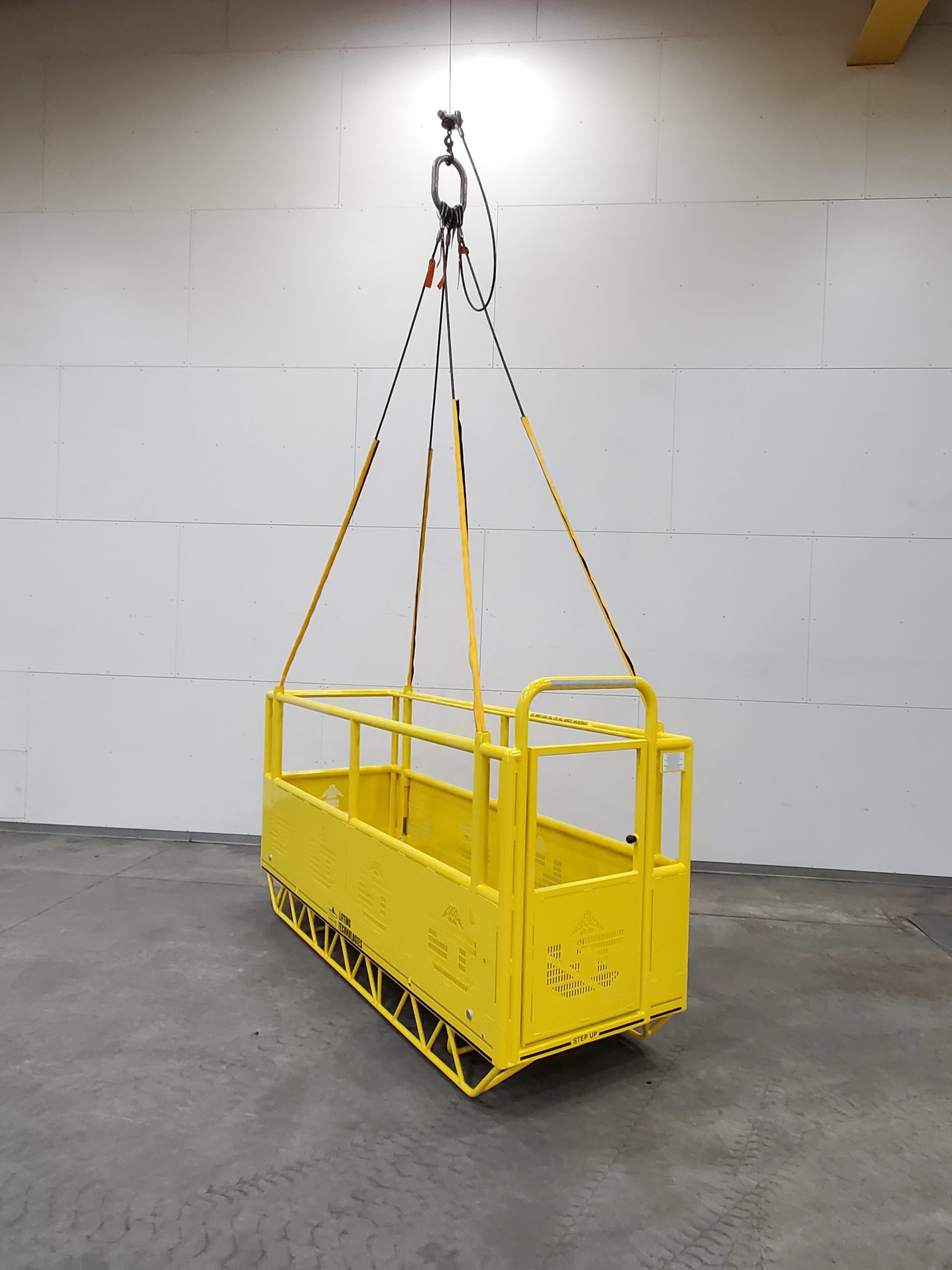

Here is a Lifting Technologies LLC 4-man Premier Series BM4-1200SOG crane suspended man basket. This basket has a solid plate floor with non-skid tape for ASME B30.23 compliance. Finished with our zinc-enriched primer coat along with the safety yellow powder coating, it also is equipped with four additional 5000lb rated fall protection anchorage points, LT’s test weight system and true base-attached sling assembly.

Dimensions: 108″ x 36″ x 42″
Capacity: 4- person, 1200lbs
Model: BM4-1200SOG 0820214

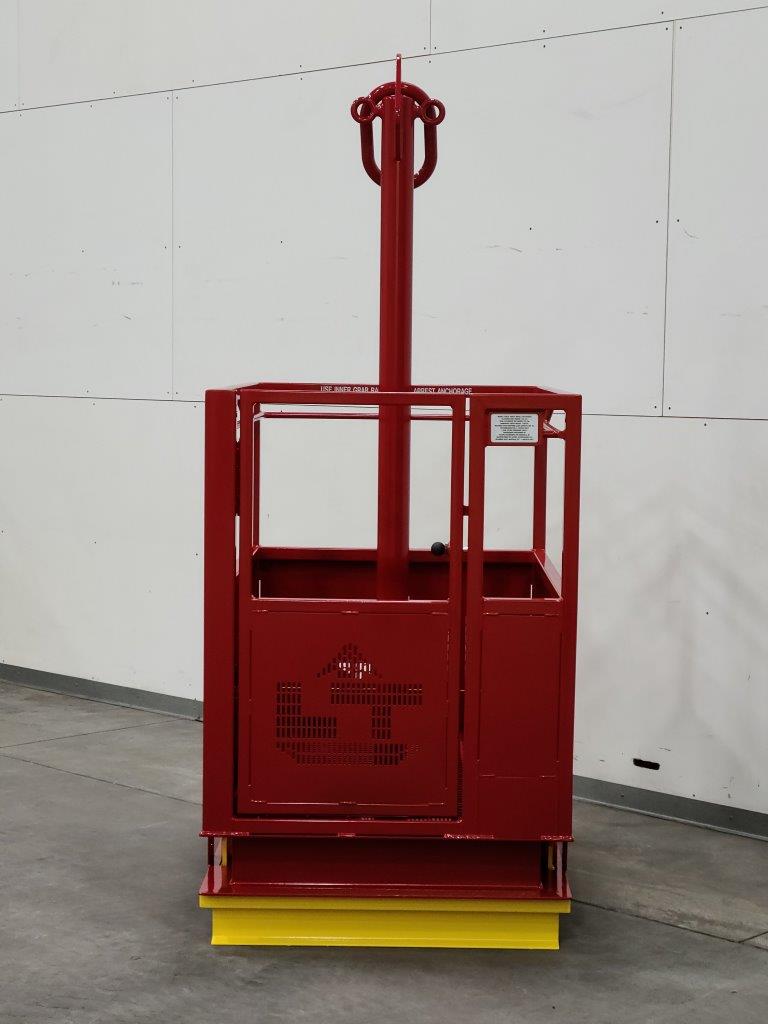

1-man, 400lb capacity crane suspended man basket utilizing a center post with a master link for crane suspension. This platform was purchased specifically for suspension by bridge crane to clean dust and fiber within a manufacturing facility for fire safety protocol.

Dimensions: 42″ x 42″
Capacity: 1-person, 400lbs
Model: SEC1-400CP EC0920381

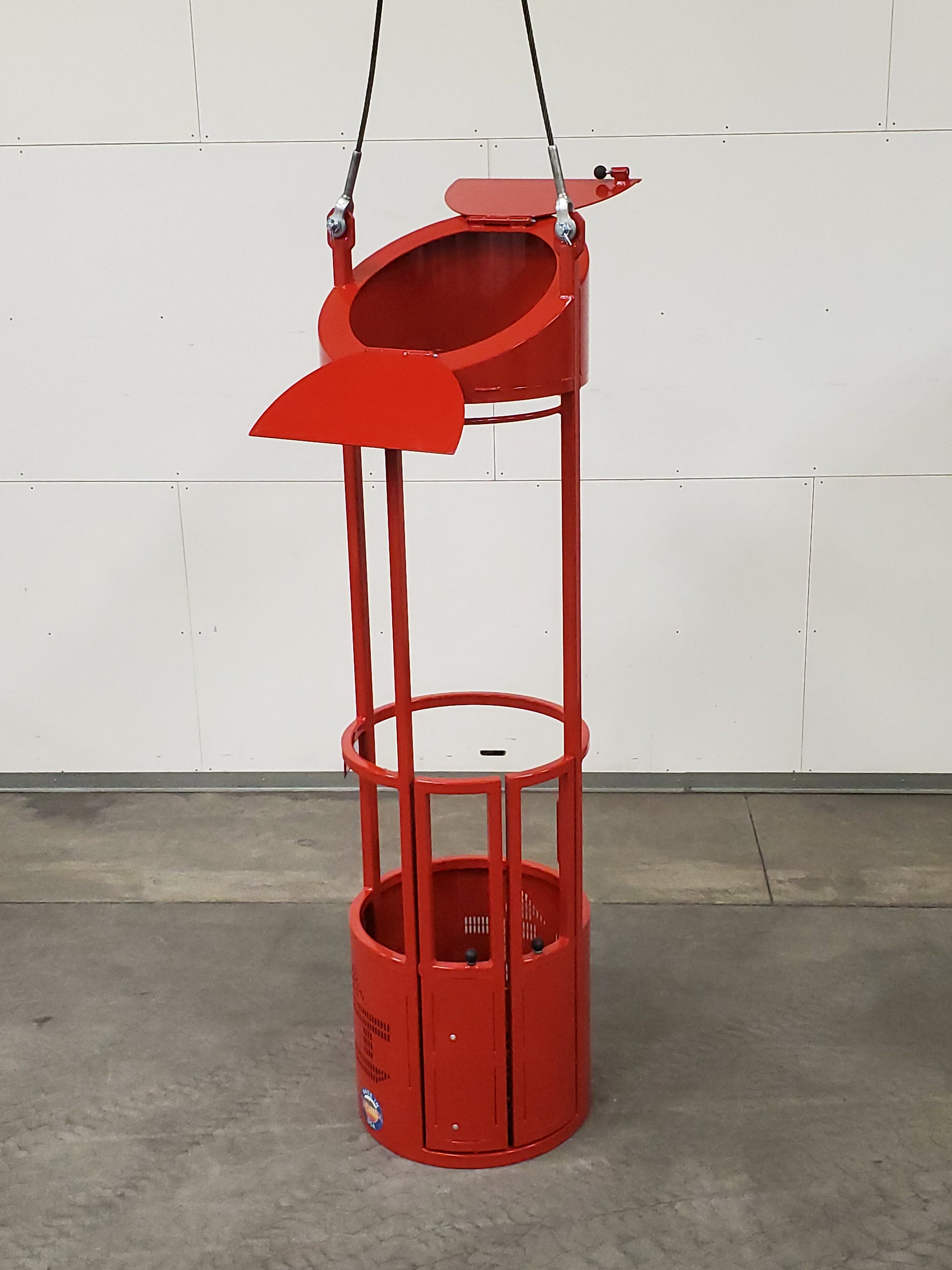

Professional Series, one-man capacity with a sloped roof and escape hatch for the ultimate safety during down hole use. The double inward opening gate is specifically designed to allow for inward opening on a small diameter basket.

Dimensions: 26″ diameter x 79″ height
Capacity: 1-man, 300lbs
Model: ERM1-300SO-26 EC0720211

This large capacity crane suspended man basket is equipped with overhead protection and additional overhead fall protection anchorage.

Capacity: 12-man, 3600lbs
Model: RECO12-3600SO EC062014.12, EC062015312

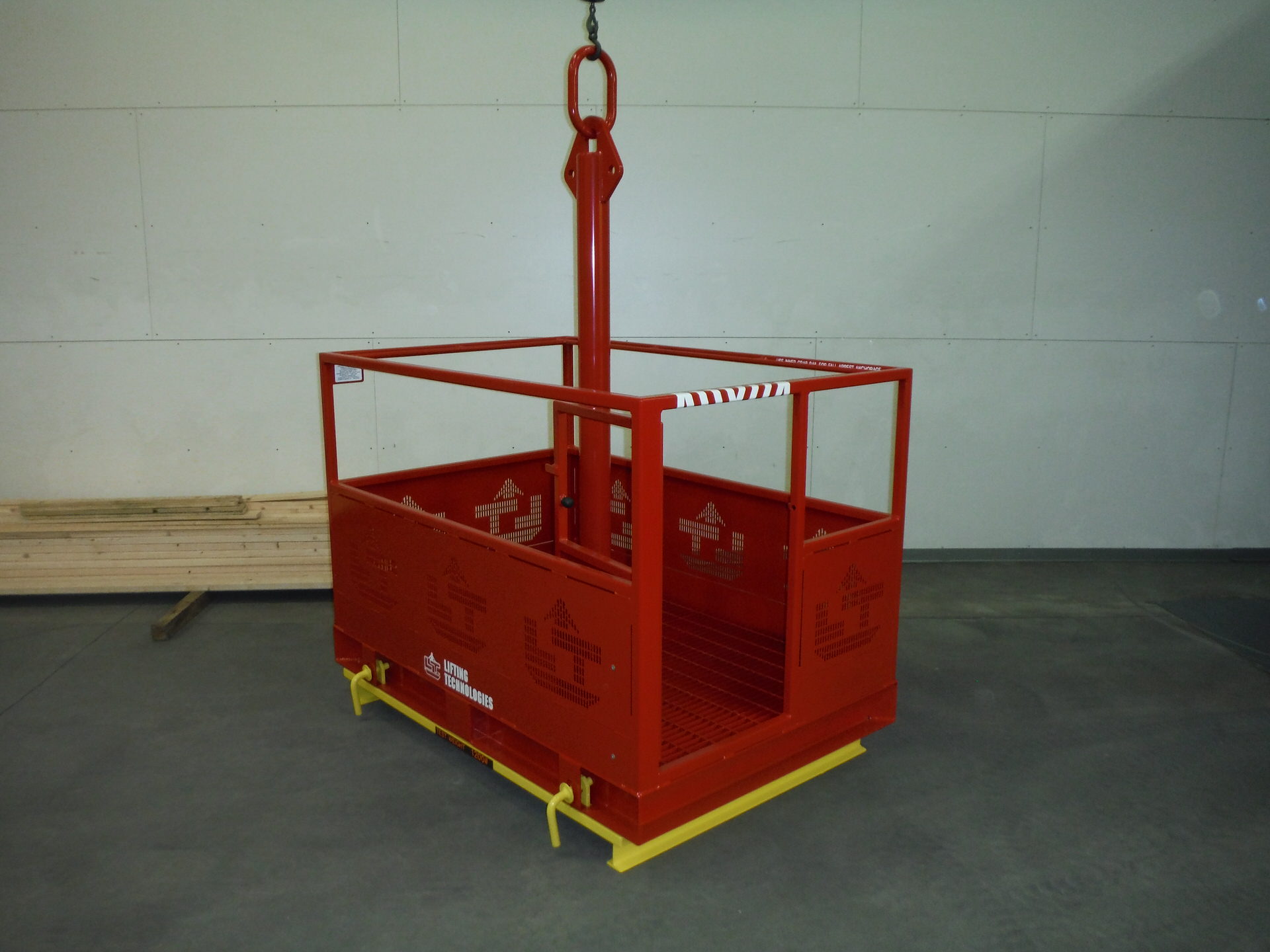

This unique platform is crane hoisted by the master link attachment to the center post, as opposed to a 4 leg sling assembly. It includes an additional safety leg for attachment about the overhaul ball. Test weight included, as with all our personnel platforms.

Dimensions: 48″ x 72″ x 55″
Capacity: 4-person, 1200lbs
Model: REC4-1200CP EC1018934

This custom 5-person man basket has replaceable Lexan panels with rubber seals over the perforated windows in the overhead protection. There are eight additional overhead fall protection anchorage points, and it comes complete with a sling system and our rapid on/off test weight system.

Dimensions: 96″ x 96″ x 95″
Capacity: 5-person, 1500lbs
Model: SM5-1500SOS 1215535

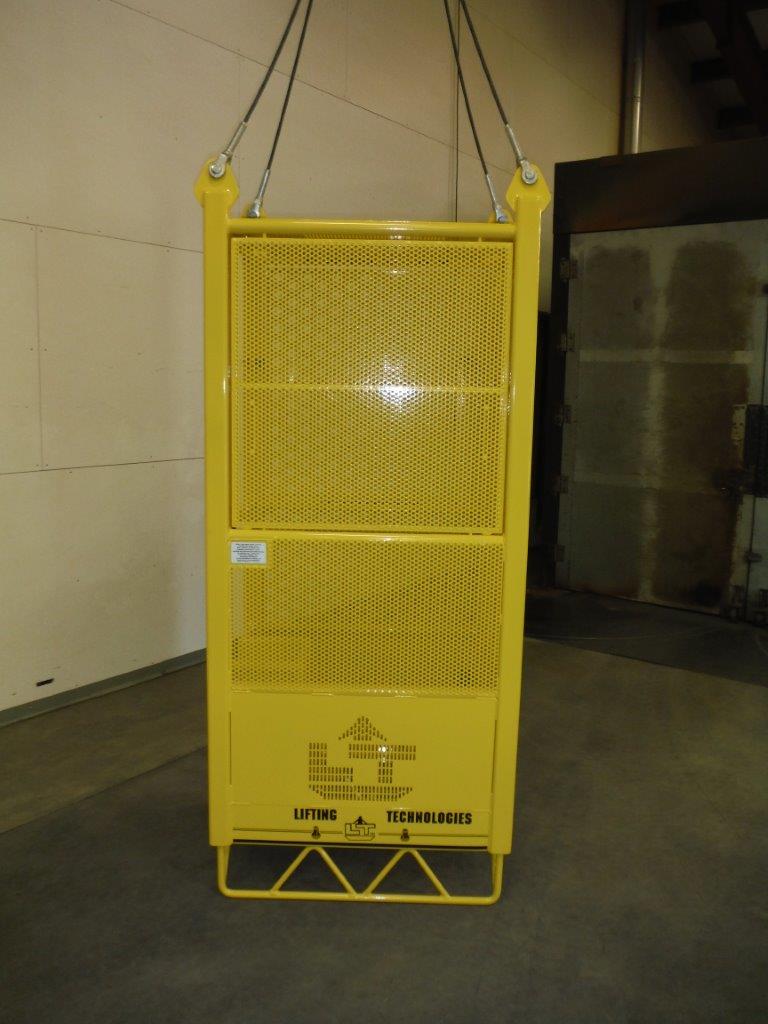

This is a custom platform complete with overhead protection, overhead fall protection anchorage, inward swinging bi-fold door, and profiled on one end to feed a hose through for performing specific work duties. Each 40″ side has a removable panel from the top rail to the overhead.

Dimensions: 30″ x 40″ x 94″
Capacity: 2-man, 600lb
Model: BM2-600SOS 0817182

This dual-purpose personnel platform can be suspended with a forklift or crane. It is designed with fork tubes and our pin system for forklift and lifting eyes and our sling system for crane suspension. The collapsible mast guard folds down when rigged to a crane.

Dimensions: 48″ x 48″
Capacity: 2-man, 750lb
Model: SECFL2-750WA EC0820312
